Solid-State Battery

Most of the electronic equipment, now-a-days use lithium-ion batteries. We can find them in our laptops, mobile phones, cars and even electronic toys. Most importantly, these are now used in motor vehicles. The conventional internal combustion engine driven vehicles use petroleum oil, a fossil fuel and emit toxic gases causing air pollution. These vehicles also emit carbon dioxide, a greenhouse gas which causes global warming and climate change. Hence, electric vehicles are being introduced in almost all countries. The technology for this battery is well-developed and no other battery compares with it in term of energy density.

            The lithium-ion batteries have some problems. It uses flammable substances which sometimes explode. Further the metals such as lithium, nickel and cobalt used for its different components are available only in a few countries and they are creating monopoly for this. For example, now China controls 60 percent of world batter supply and the rest being South Korea (22 per cent) and Japan (8 per cent) . Hence, scientists searched for a sustainable and renewable alternative and found “Solid-State Battery” as one of the prospectives.

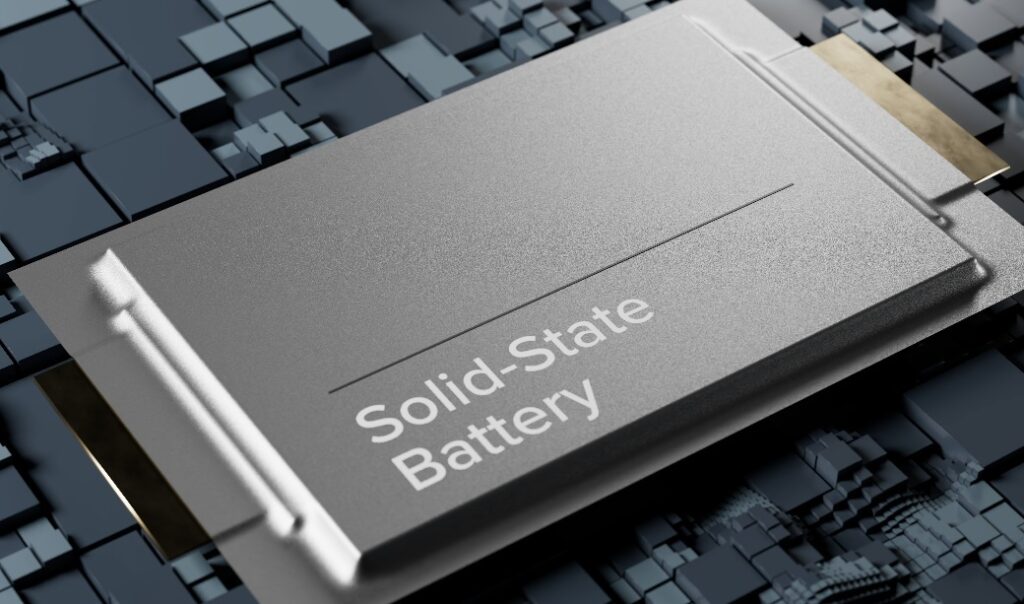

Solid-State Battery

            The lithium-ion batteries have a liquid electrolyte, through which ions flow in one direction to charge the battery and the other direction when it is being drained. Solid-state batteries, as the name suggests, replace this liquid with a solid material. A lithium-ion battery will typically have a graphite electrode, a metal oxide electrode and an electrolyte of lithium salt dissolved in some sort of solvent. In solid-state batteries, you might find one of a whole host of promising materials replacing the lithium, including ceramics and sulphides.

            A solid-state battery is a type of battery that uses a solid electrolyte (typically made out of ceramic or a polymer mix) to move ions from one electrode to another, instead of one made of liquid or gel, which is the case for traditional lithium-ion batteries. This design tweak creates an energy-dense power source that’s safer, compact and can last twice as long.

Working of Solid-State Batteries

            A solid-state battery uses a solid electrolyte — as opposed to a liquid electrolyte, which is what a standard lithium-ion battery uses — to move ions from one electrode to another. Inside of solid-state batteries, lithium ions generally move between two electrodes, the anode and cathode, to generate and store power. In this case, a solid electrolyte — often made of ceramic, polymer or glass materials — facilitates the transport of ions from one pole to the other during charge and discharge cycles.

            As a battery charges, lithium ions migrate from the cathode (made of a mix-metal oxides or phosphates) through the solid electrolyte to the anode (often composed of graphite, silicon or lithium metal), where they are stored. During discharge, the ions travel back to the cathode. This movement generates the electrical current that powers connected devices.

            Different materials deliver different results. Toyota’s prototypes feature a sulfur-based electrolyte, while Samsung experiments with silver-carbon anodes. Other systems, like QuantumScape’s lithium-metal models, are built without an anode component entirely. Instead, it’s formed on the battery’s first charge, which “dramatically simplifies battery design.

            The solid electrolyte’s role is crucial. It not only conducts lithium ions, it also acts as a separator that prevents direct contact between the anode and cathode — of positive and negative charges, respectively — thereby eliminating the risk of short circuits, providing a more stable and uniform ionic pathway.

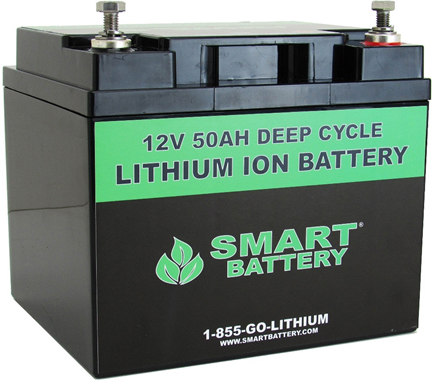

Difference Between Solid-State Battery and Lithium-ion Battery

            Both solid-state batteries and lithium-ion batteries operate on the same principle. They take energy in, store it, then release it to whatever electronic device they’re inside of — from TV remotes to watches to cars.

            What differentiates solid-state batteries from traditional lithium-ion batteries is the materials inside.

• Lithium-ion batteries use a liquid or gel electrolyte that’s essentially a lithium-salt solution dissolved in an organic solvent. While it allows for efficient ionic transfer, it carries notable risks. These materials are heavy, highly flammable and prone to leakage.
• Solid-state batteries use a solid electrolyte made of non-flammable, inorganic materials. This change also makes it possible to graduate from standard graphite-based anodes to those made of lithium metal, because of their exceptional energy capacity and low electrochemical potential. This makes for safe, long-lasting batteries in smaller, lighter packages. Lithium is the lightest metal on the planet and is nearly ten times more energy dense than the graphite that’s used in today’s batteries, enabling it to store more energy in the same volume.

 Advantages of Solid-State Batteries

            Solid-state batteries are widely considered to be the next big thing in energy storage due to the following advantages.

Enhanced Safety

            Safety is the primary benefit ascribed to solid-state batteries. They are made out of thermally stable, inorganic materials, which virtually eliminates the risk of leaks, fires and explosions compared to their highly flammable, liquid-based counterparts. This allows them to withstand temperatures up to 1,000 degree Celsius, making them a great asset in the production of electric vehicles, aerospace systems and industrial equipment where they may be exposed to extreme environments.

Higher Energy Density

            Solid-state batteries are about 2.5 times more energy dense than lithium-ion batteries. That means solid-state batteries can store more energy in less space, maximizing energy capacity and prolonging battery life. Longer-lasting power enables electric vehicles to drive further distances on a single charge without increasing battery size or weight, and enhances the performance of portable electronics, with extended usage time and a reduced need for frequent recharging.

Lightweight, Compact Designs

            Solid-state batteries use less materials and lighter materials than their liquid-based counterparts. This weight reduction means battery packs can be thin and sleek, increasing the mobility of a device or electric-powered vehicle. Without a liquid electrolyte, a solid-state battery simplifies sealing and eliminates the need for any additional cooling systems in large-scale equipment.

Faster Charge

            By making it easier for lithium ions to oscillate from one side of the battery to the other, solid-state batteries can support rapid charging times compared to today’s standard. The solid-state, lithium-ion batteries being developed for electric vehicles by QuantumScape, for example, can charge from 10 to 80 percent in less than 15 minutes, according to Holme, the company’s chief technology officer.

High Degree of Freedom in Shape

            Solid-state batteries are not bound to the structural limitations of liquid-based batteries, which are designed to prevent leakage. They’re smaller and thinner, and can be bent, shaped, fit to overlap one another and even directly sintered into a part.

Disadvantages of Solid-State Batteries

            The followings are the disadvantages of solid-state batteries.

High Cost

            Solid-state batteries have not reached a level for mass production. The materials that they’re made out of are difficult to scale, with low-throughput manufacturing processes driving up the cost further. It is estimated the best-case scenario, where solid-state batteries reached mass production at $140 per kilowatt hour by 2028. But certain obstacles could inflate costs to $175 per kilowatt hour between 2032 and 2033, delaying commercial production by five years.

Materials Still Being Studied

            Finding the right materials to actually build a solid-state battery proves to be tricky. Oxide-based electrolytes, for example, are porous enough to allow ions to pass through, but are often too brittle to break if bended. Those made out of sulfides are soft and perfectly deformable, but become chemically unstable when exposed to moisture. Switching a battery’s anode from graphite to lithium metal is the ultimate goal. So even when promising materials are discovered, they still face challenges with scalability and manufacturing, hindering their practical use in commercial batteries.

Manufacturing Challenges

            The cost of solid-state batteries at present is well beyond $100 per kilowatt hour, and it has everything to do with manufacturing hang-ups. Solid-state batteries require particular temperature and pressure conditions that are specific to each build and unique set of materials, complicating mass-scale production. But with each modification comes overall added costs, impeding their commercial viability.

Interface Issues

            When a solid lies on top of another solid, the two surfaces rarely make full contact due to interfacial gaps and irregularities between them. Sometimes, this is only detectable under a microscope. Cracks and crevices between a solid electrolyte and an electrode result in sluggish ionic transfer — or no transfer at all — creating electrical resistance and poor conductivity. Over time, the lack of proper contact may degrade   that hardens post-application to maintain a “true” solid composition in a solid-state battery.

Conclusion

            Solid-state batteries are potentially useful in pacemakers, Radio-frequency identification (RFID), wearable devices, and electric vehicles.           The greatest advantage of solid-state battery over lithium-ion battery for electric vehicles is its less charging time which along with its lighter weight will make the electric vehicles more popular. Recently, a team of scientists at Harvard University developed a solid-state battery that can charge in the time it takes to fill up a petrol tank with a battery lifespan that lasts three-to-six times longer than the typical EV battery.

            While new innovations accumulate, solid-state batteries remain held up in research labs and on factory floors. They’re still too expensive to produce and challenging to manufacture at scale, making them commercially nonviable. But with the advancement of technology, the difficulties will gradually be reduced and large scale manufacturing can be done with affordable cost. If successful, solid-state batteries will provide us the best hope to get to safe, truly affordable, long-range electric cars that double in mileage.
